NORDITEK SEPERATOR

VB1400

Vb1400 waterbath

Overview

Waterbath

Norditek’s water bath is a simple and efficient machine that separates materials by buoyancy. You get three fractions out of the water bath: floating, sinking and the sludge. The sludge exits through a sludge screw on the side of the machine.

In addition to separating on the basis of buoyancy, the water bath also carries out a light washing of the material. This makes it possible to remove fine particles, which are pumped out through a sludge screw.

The water bath can be used on input materials such as industrial, construction and demolition waste, waste sand, etc. For example, for separating wood from stone or for separating various other mixed materials where buoyancy separates them.

Vb1400 waterbath

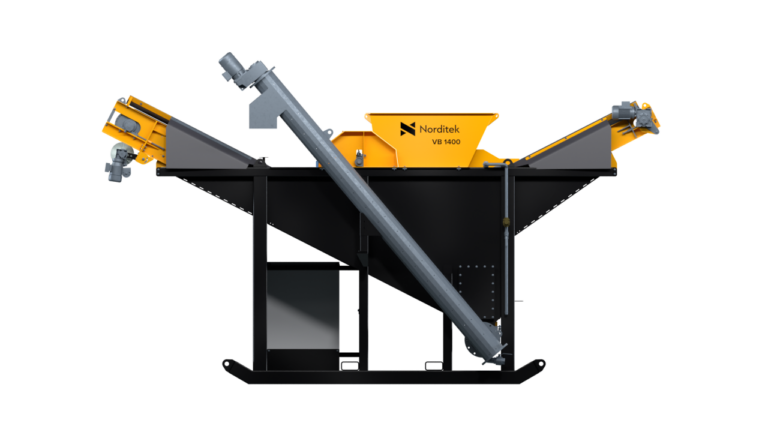

VB1400 Waterbath - side view

Technical data

Input height

3000 mm

Electricity

400V/32A

Transport dimensions

L: 6250 x W:2900 x H: 3675 mm

Weight

4.57 tons
